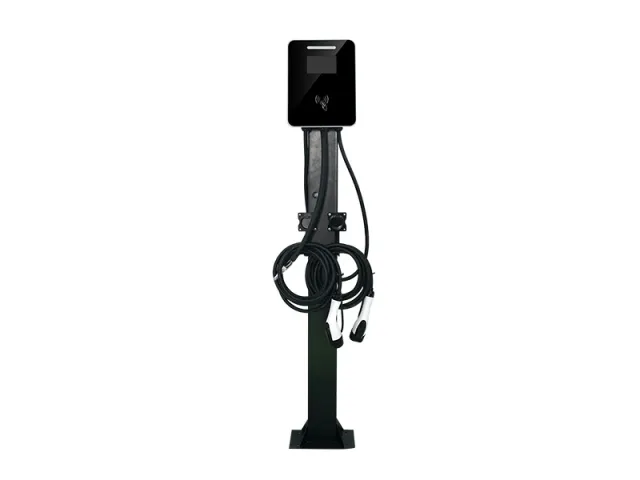

1. Home wall-mounted AC charging pile, can be installed with a column.
2. Three-color charging indicator light, prompting charging-related values.
3. 14KW power, home charging pile, two guns can be charged at the same time.
4. Product type: TYPE2/TYPE1
| Detailed parameters | Parameter details | |
| Name Model | MRS-EJ-14032 | |
| Appearance and structure | Plug model | Individual wiring, no plug |
| Product Type | □Plug and charge □Swipe card to start | |
| Shell material | Gun head PC9330/control box PC ABS | |
| Equipment size | Gun head 230*70*60mm/pile box 315*245*105mm [H*W*D] | |
| Installation | Pillar type/wall mounted | |
| Installing Components | Wall mounting screw accessories [can be installed with columns] | |
| Routing method | Down in and out | |
| Equipment weight | About 5.5KG | |
| Cable specifications | 3*6*2mm² 0.75mm² | |
| Cable length | 5 meters [support customized cable length] | |
| Electrical indicators | Input voltage | 85V-265V |
| Input frequency | 50Hz | |
| Maximum power | 14KW | |
| Output voltage | 85V-265V | |
| Output current | 32A | |
| Standby power | 3W | |
| Environmental indicators | Applicable Scenarios | Indoor/Outdoor |
| Operating humidity | 5%~95% non-condensing | |
| Operating temperature | -30℃~ 50℃ | |
| Working altitude | <2000 meters | |
| Protection level | IP54 | |
| Cooling method | Natural cooling | |
| Safety standards | GB/T | |
| Flame retardant grade | UL94 V0 | |
| Product Certificate | Quality inspection report | |
| Functional design | Human-Machine Interface | □LED indicator □4.3-inch display □APP |
| Communication interface | / | |
| Packaging specifications | Box size/weight | L*W*H:460*330*250mm【approx. 7.8KG】 |
| Safety Design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, overtemperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
|
