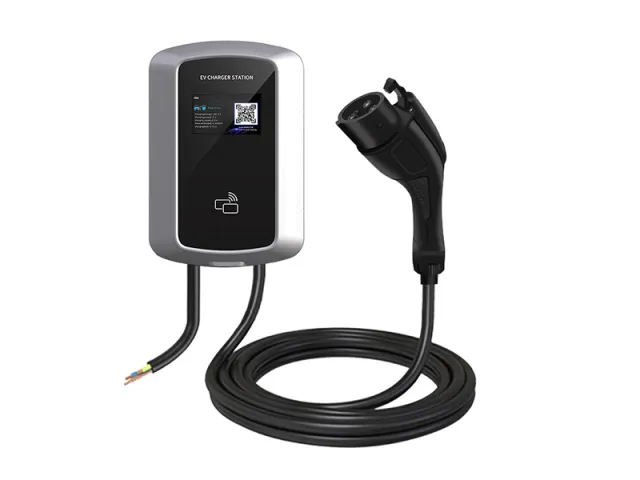

1. Home wall-mounted AC charging pile, can be installed with a column.
2. Three-color charging indicator light, prompting charging related values.
3. 7KW, 11KW, 22KW power optional, home charging pile.
4. Product type: TYPE2/TYPE1
| Detailed parameters | Parameter details | |||
| Name Model | MRS-ER8-07032 | MRS-ER8-11016 | MRS-ER8-22032 | |
| Appearance and structure | Plug model | Individual wiring, no plug | ||
| Product Type | □Plug and charge □Bluetooth activation □Card swipe activation □APP | |||
| Shell material | Gun head PC9330/control box PC ABS | |||
| Equipment size | Gun head 230*70*60mm/control box 320*220*95mm [H*W*D] | |||
| Installation | Pillar type/wall mounted | |||
| Installing Components | Wall mounting screw accessories [can be installed with columns] | |||
| Routing method | Down in and out | |||
| Equipment weight | About 3.7KG | About 4.7KG | ||
| Cable specifications | 3*6mm² 0.75mm² | 5*2.5mm² 0.75mm² | 5*6mm² 0.75mm² | |
| Cable length | 5 meters [support customized cable length] | |||
| Electrical indicators | Input voltage | 85V-265V | 380V±10% | |
| Input frequency | 50Hz/60Hz | |||
| Maximum power | 7KW | 11KW | 22KW | |
| Output voltage | 85V-265V | 380V±10% | ||
| Output current | 32A | 16A | 32A | |
| Standby power | 3W | |||
| Environmental indicators | Applicable Scenarios | Indoor/Outdoor | ||
| Operating humidity | 5%~95% non-condensing | |||
| Operating temperature | -30℃~ 50℃ | |||
| Working altitude | <2000 meters | |||
| Protection level | IP54 | |||
| Cooling method | Natural cooling | |||
| Safety standards | GB/T | |||
| Flame retardant grade | UL94 V0 | |||
| Product Certificate | Quality inspection report | |||
| Functional design | Human-Machine Interface | □LED indicator □4.3-inch display □APP | ||
| Communication interface | □4G □WIFI □4G WIFI □OCPP1.6 | |||
| Packaging specifications | Box size/weight | L*W*H:460*330*250mm【approx. 4.7KG】 | L*W*H:460*430*250mm【approx. 5.7KG】 |
|
| Safety Design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, overtemperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
|||
