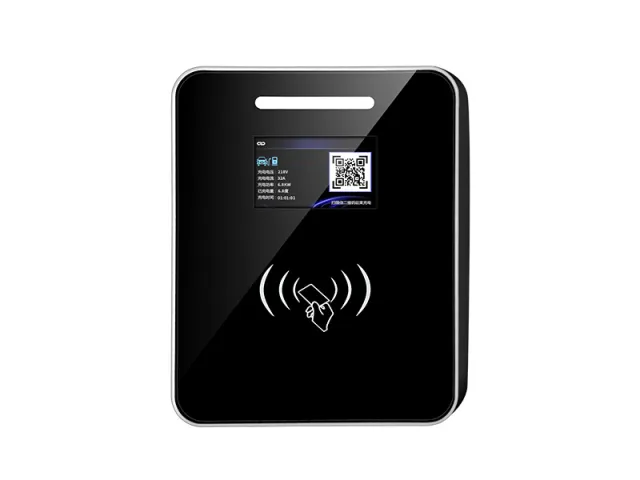

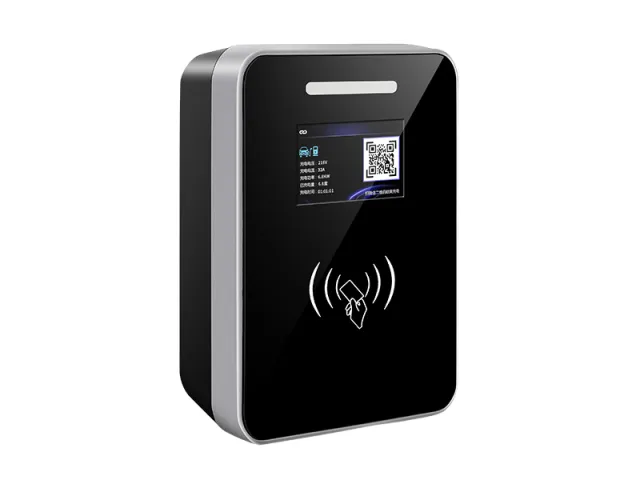

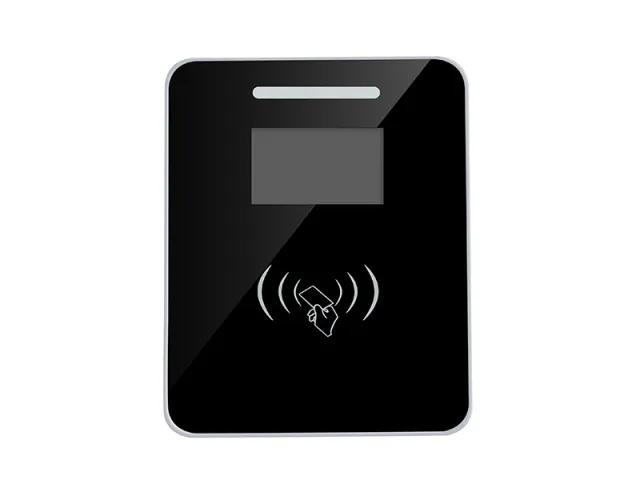

1. Wall-mounted and column-mounted AC charging piles.
2. The power of the device is as low as 3W in standby mode, which is energy-saving and low-consumption.
3. Three-color charging indicator light to indicate charging-related values.
4. The numerical screen displays the relevant data of the charging pile in real time.
5. Silver, white and black glass panels are optional, and customized layouts are supported.
6. Product type: TYPE2/TYPE1
| Detailed parameters | Parameter details | |||
| Name Model | MRS-ES-07032 | MRS-ES-11016 | MRS-ES-22032 | |
| Appearance and structure | Plug model | Individual wiring, no plug | ||
| Product Type | □Plug and charge □Bluetooth activation □Card swipe activation □APP | |||
| Shell material | Gun head PC9330/control box PC ABS | |||
| Equipment size | Gun head 230*70*60mm/pile box 340*190*80mm [H*W*D] | |||
| Installation | Pillar type/wall mounted | |||
| Installing Components | Wall mounting screw accessories [can be installed with columns] | |||
| Routing method | Down in and out | |||
| Equipment weight | About 4.1KG | About 3.9KG | About 5.1KG | |
| Cable specifications | 3*6mm² 0.75mm² | 5*2.5mm² 0.75mm² | 5*6mm² 0.75mm² | |
| Cable length | 5 meters [support customized cable length] | |||
| Electrical indicators | Input voltage | 85V-265V | 380V±10% | 380V±10% |
| Input frequency | 50Hz/60Hz | |||
| Maximum power | 7KW | 11KW | 22KW | |
| Output voltage | 85V-265V | 380V±10% | 380V±10% | |
| Output current | 32A | 16A | 32A | |
| Standby power | 3W | |||
| Environmental indicators | Applicable Scenarios | Indoor/Outdoor | ||
| Operating humidity | 5%~95% non-condensing | |||
| Operating temperature | -30℃~ 50℃ | |||
| Working altitude | <2000 meters | |||
| Protection level | IP54 | |||
| Cooling method | Natural cooling | |||
| Safety standards | GB/T | |||
| Flame retardant grade | UL94 V0 | |||
| Product Certificate | Quality inspection report | |||
| Functional design | Human-Machine Interface | □LED indicator □4.3-inch display □APP | ||
| Communication interface | □4G □WIFI □4G WIFI □OCPP1.6 | |||
| Packaging specifications | Box size/weight | L*W*H:380*200*210mm【About 5.0KG】 |
L*W*H:380*200*210mm【approximately 4.8KG】 |
L*W*H:380*200*210mm【approximately 6.0KG】 |
| Safety Design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, overtemperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
|||
