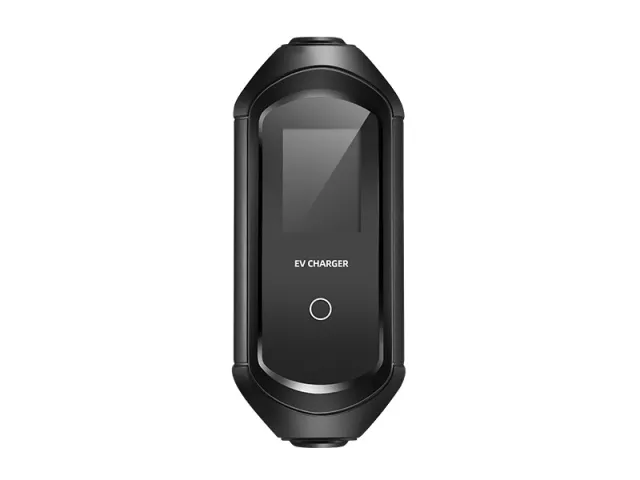

1. Portable home car charger, can be carried in the car after charging.
2. The power of the device is as low as 3W in standby mode, which is energy-saving and low-consumption.
3. Three-color charging indicator light to prompt charging related values.
4. The numerical screen displays the relevant data of the charging gun in real time.
5. Product type: TYPE2/TYPE1
| Detailed parameters | Parameter details | ||
| Name Model | MRS-EQ2-03016 | MRS-EQ2-07032 | |
| Appearance and structure | Plug model | 16A European standard plug | 32A industrial plug |
| Product Type | Plug and charge/scheduled charging/current regulation | ||
| Shell material | Gun head PC9330/control box PC ABS | ||
| Equipment size | Gun head 230*70*60mm/control box 225*95*50mm [H*W*D] | ||
| Installation | Floor-standing/wall-mounted | ||
| Installing Components | screw | ||
| Routing method | Up and down | ||
| Equipment weight | About 2.2KG | About 3.6KG | |
| Cable specifications | 3*2.5mm² 0.75mm² | 3*6mm² 0.75mm² | |
| Cable length | 5 meters [support customized cable length] | ||
| Electrical indicators | Input voltage | 85V-265V | |
| Input frequency | 50Hz/60Hz | ||
| Maximum power | 3.5KW 7KW | ||
| Output voltage | 85V-265V | ||
| Output current | 6A-8A-13A-16A 6A-8A-10A-13A-16A-24A-32A | ||
| Standby power | 3W | ||
| Environmental indicators | Applicable Scenarios | Indoor/Outdoor | |
| Operating humidity | 5%~95% non-condensing | ||
| Operating temperature | -30℃~ 50℃ | ||
| Working altitude | <2000 meters | ||
| Protection level | IP54 | ||
| Cooling method | Natural cooling | ||
| Safety standards | GB/T | ||
| Flame retardant grade | UL94 V0 | ||
| Product Certificate | Quality inspection report | ||
| Functional design | Human-Machine Interface | 2.8-inch LCD display | |
| Communication interface | / | ||
| Packaging specifications | Box size/weight | L*W*H:380*380*100mm【approximately 3KG】 | L*W*H:380*380*100mm【approximately 4.4KG】 |
| Safety Design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, overtemperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
||
