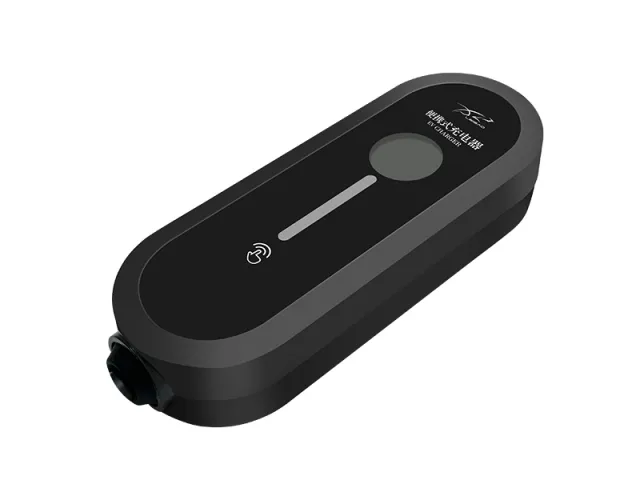

1. Portable AC car charger, can be carried with the car after charging.
2. 1.26-inch LCD display, more comprehensive human-computer communication interface.
3. Numerical screen display, showing the relevant basic data of real-time charging of the charging gun.
4. Current gear adjustment function, appointment timed charging function.
5. Product type: TYPE2/TYPE1
| Detailed parameters | Parameter details | ||||
| Name Model | MRS-EP1-03016 | MRS-EP1-07032 | MRS-EP2-03016 | MRS-EP2-07032 | |
| Appearance and structure | Plug model | 16A European standard plug | 32A European standard industrial plug | 16A European standard plug | 32A European standard industrial plug |
| Product Type | Plug and charge | Plug and charge/scheduled charging | Plug and charge/scheduled charging/current regulation |
||
| Shell material | Gun head PC9330/control box ABS | ||||
| Equipment size | Gun head 230*70*60mm/control box 220*80*45mm [H*W*D] | ||||
| Installation | Floor-standing | ||||
| Installing Components | Wall-mounted back buckles and screw accessories | ||||
| Routing method | Up and down | ||||
| Equipment weight | About 2KG | About 3.4KG | About 2KG | About 3.4KG | |
| Cable specifications | 3*2.5mm² 0.75mm² | 3*6mm² 0.75mm² | 3*2.5mm² 0.75mm² | 3*6mm² 0.75mm² | |
| Cable length | 5 meters [support customized cable length] | ||||
| Electrical indicators | Input voltage | 85V-265V | |||
| Input frequency | 50Hz | /60Hz | |||
| Maximum power | 3.5KW | 7KW | 3.5KW | 7KW | |
| Output voltage | 85V-265V | ||||
| Output current | 16A | 32A | 6A-8A-10A-13A-16A | 6A-8A-10A-13A-16A- 24A-32A |
|
| Standby power | 3W | ||||
| Environmental indicators | Applicable Scenarios | Indoor/Outdoor | |||
| Operating humidity | 5%~95% non-condensing | ||||
| Operating temperature | -30℃~ 50℃ | ||||
| Working altitude | <2000 meters | ||||
| Protection level | IP54 | ||||
| Cooling method | Natural cooling | ||||
| Safety standards | GB/T | ||||
| Flame retardant grade | UL94 V0 | ||||
| Product Certificate | Quality inspection report | ||||
| Functional design | Human-Machine Interface | / | 1.28-inch LCD display | ||
| Communication interface | / | ||||
| Packaging specifications | Box size/weight | L*W*H:380*380*100mm 【approximately 2.8KG】 |
L*W*H:380*380*100mm 【approximately 4.2KG】 |
L*W*H:380*380*100mm 【approximately 2.8KG】 |
L*W*H:380*380*100mm 【approximately 4.2KG】 |
| Safety Design | Undervoltage protection, overvoltage protection, overload protection, overcurrent protection, overtemperature protection, leakage protection, grounding protection, lightning protection, flame retardant protection |
||||
